Cable testing and cable diagnostics
PD-TAD 62

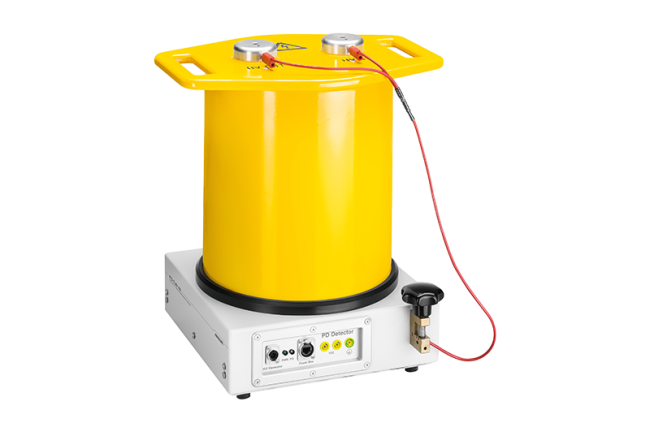

PD-TaD 62: Portable Partial Discharge diagnostic system up to 62 kV peak

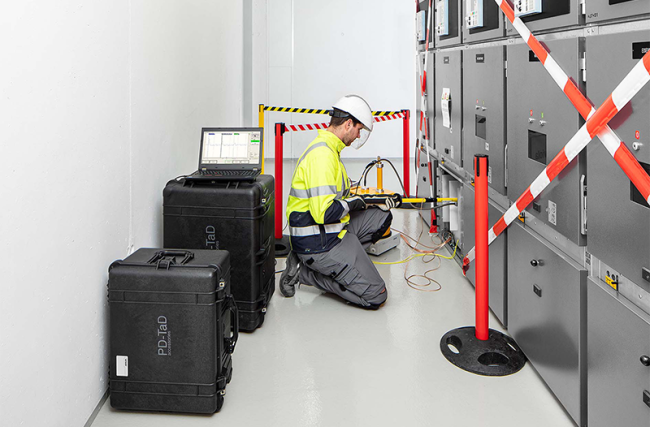

The PD-TaD 62 is a portable Partial Discharge diagnostic system. It is used alongside a VLF source for offline diagnostics of medium-voltage insulated cables. Supporting up to 62 kV peak or 44 kV rms, it is ideal for cables with voltage ratings up to 20/35 kV. This system is a complementary solution for implementing a reliability-centered maintenance strategy.
Main features:
• Enables the identification and localization of Partial Discharge activity in terminations and joints.
• Combined with BAUR Software 4, it provides quick and reliable analysis, delivering data such as discharge intensity, inception and extinction voltages, and discharge frequency.
• Allows phase-resolved analysis for preliminary diagnostics of observed defects types.
• Can be used alongside the viola TD, frida TD, or PHG equipment to perform withstand tests monitored by Tangent Delta and Partial Discharge (Full MWT).
• Integrated filter for suppressing noise signals.
• Maximum precision due to high coupling capacity (10 nF) and sensitivity (≤1 pC).
• Combined with BAUR Software 4, it provides quick and reliable analysis, delivering data such as discharge intensity, inception and extinction voltages, and discharge frequency.
• Allows phase-resolved analysis for preliminary diagnostics of observed defects types.
• Can be used alongside the viola TD, frida TD, or PHG equipment to perform withstand tests monitored by Tangent Delta and Partial Discharge (Full MWT).
• Integrated filter for suppressing noise signals.
• Maximum precision due to high coupling capacity (10 nF) and sensitivity (≤1 pC).
