Cable fault location
CL 20
CL 20: Practical equipment for tracing cable and metallic pipe routes

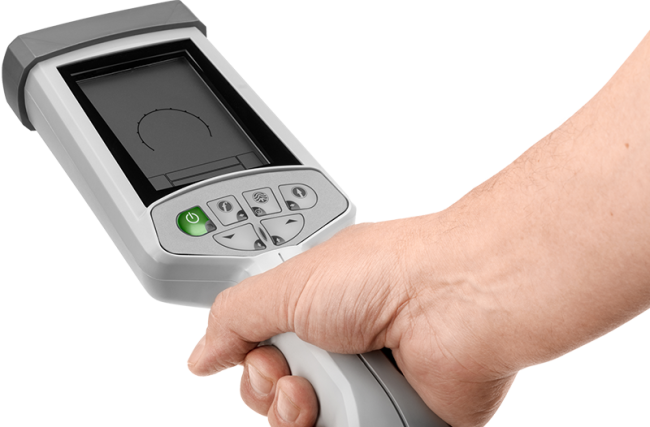

The CL 20 is a cable locator consisting of a frequency transmitter and receiver. It precisely traces the route of buried underground cables and metallic pipes at depths of up to 15 meters.
Main features:
• Quick and accurate detection of the position and installation depth of cables.
• Multiple frequencies tailored to individual location requirements.
• 10-watt transmitter for direct, inductive, and coupled connection.
• Automatic impedance adjustment maximises the range with minimal energy consumption.
• Operating modes for various location conditions.
• Continuous depth and current measurement.
• Passive frequencies for locating live cables without a transmitter.
• Detects radio frequency and cathodic protection.
• Simultaneous use of two search frequencies (815 Hz and 82 kHz).
• Multiple frequencies tailored to individual location requirements.
• 10-watt transmitter for direct, inductive, and coupled connection.
• Automatic impedance adjustment maximises the range with minimal energy consumption.
• Operating modes for various location conditions.
• Continuous depth and current measurement.
• Passive frequencies for locating live cables without a transmitter.
• Detects radio frequency and cathodic protection.
• Simultaneous use of two search frequencies (815 Hz and 82 kHz).
